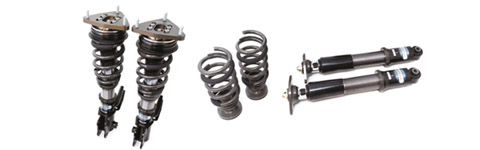

Each Neotech coilover is a bespoke creation—engineered with precision and tailored to the individual needs of drivers. Upon order or during overhaul, damping force can be custom-set within ±20% of the original spec. For those who demand more, our specialists offer one-on-one consultations to craft unique damping curves and characteristics. Whether for competitive track use, dedicated drift builds, or elevated daily driving, every detail is meticulously calibrated to deliver a driving experience as unique as the car itself
At the time of order, spring rates can be selected within a ±2kg/mm range, though availability may vary depending on the vehicle model. Our LE type coilovers offer greater flexibility in spring rate selection compared to our SE, allowing for more precise performance tuning. Final spring rates should be chosen carefully, taking into account the vehicle’s weight and suspension geometry. For optimal results, we recommend consulting with our suspension specialists to ensure a setup tailored to your specific needs

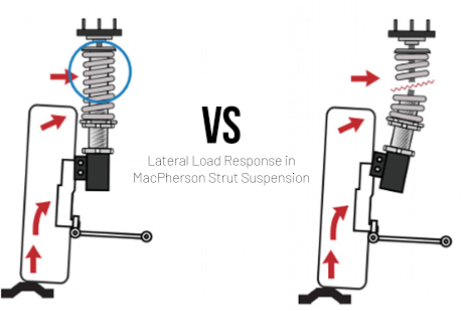

The MacPherson strut layout, commonly used in production vehicles, subjects the damper shaft to substantial lateral forces due to its structural role in maintaining wheel alignment under load. In standard upright designs, these lateral loads are absorbed directly by the thinner piston rod, often leading to increased wear and reduced long-term performance.
In contrast, an inverted monotube configuration— places the larger, more robust damper body in the load-bearing position. This significantly enhances resistance to lateral deflection, improves structural rigidity, and reduces shaft bending under high cornering loads. While this design incurs a higher manufacturing cost, it offers a substantial increase in durability, consistency, and performance, especially in motorsport or high-load applications.

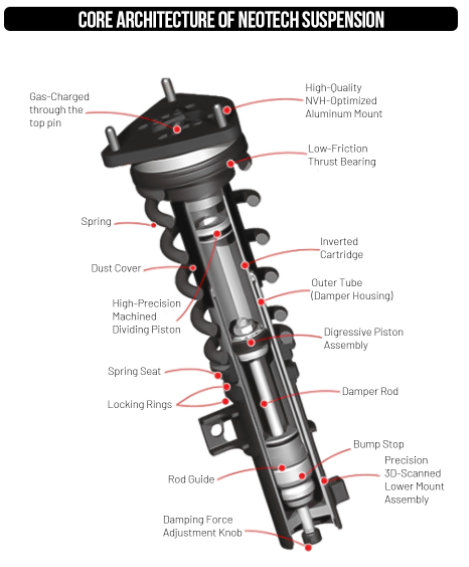

At Neotech, our R&D specialists have developed a truly refined, motorsport-grade damper system—engineered from the ground up for precision, performance, and durability.

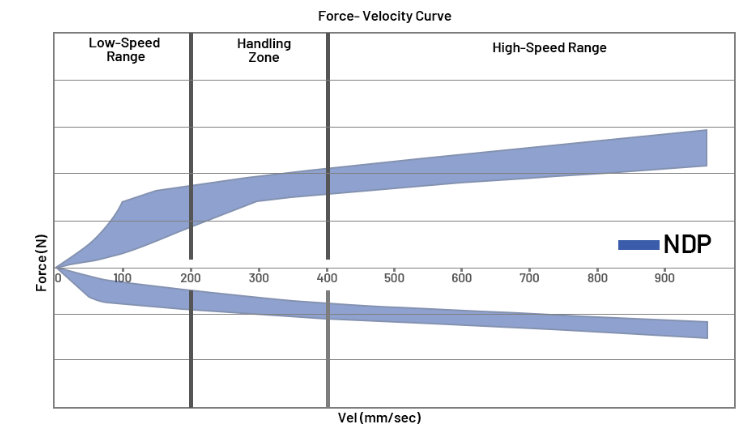

Our proprietary NDP Technology is designed for real-world performance. In soft settings, it minimizes damping in low-speed ranges to maximize ride comfort. But when the pace picks up, it activates a carefully engineered knee point—a sudden rise in damping force through mid-range speed zones.
The result? Sharp body control, predictable handling, and stability right when you need it most. Whether you're soaking up uneven surfaces or carving high-speed corners, it delivers balanced feedback and confidence at the limit.

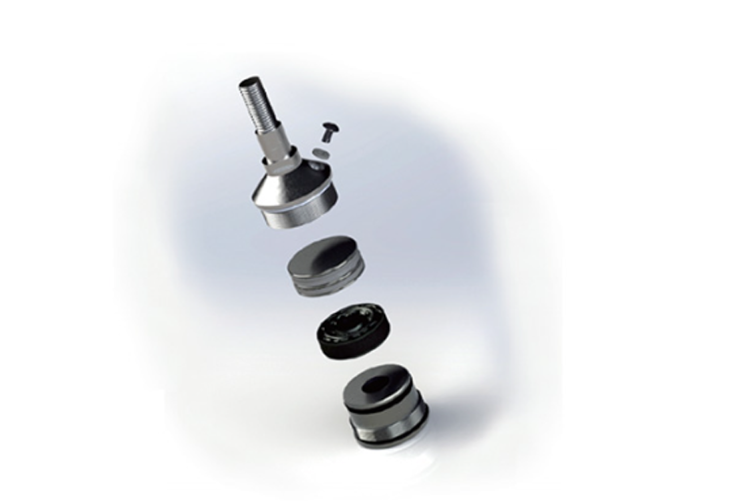

Prevents unwanted noise commonly found in Coilover suspension systems. For those who demand pure performance, a pillowball option is also available

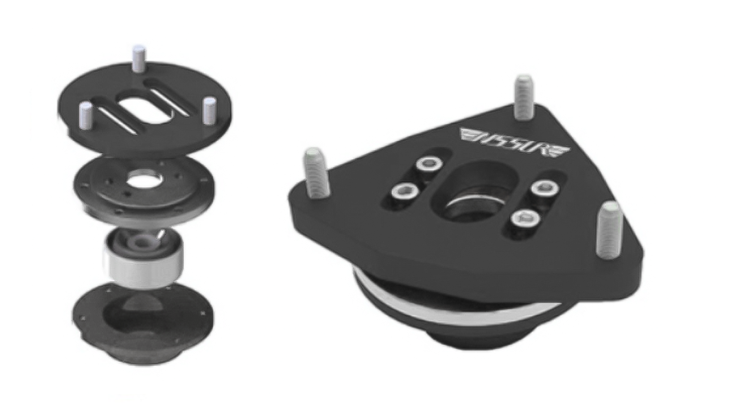

Developed through a government-backed R&D program and now patent-registered, our Anti-NVH Top Mount represents a new standard in suspension refinement. By integrating a specially engineered rubber isolator into the camber-adjustable top mount, we effectively suppress Noise, Vibration, and Harshness (NVH)—delivering composure, quietness, and road isolation that’s nearly impossible to achieve with traditional rigid mounts.
This technology provides exceptional ride quality for street and spirited driving, especially in vehicles where maintaining daily comfort is just as important as precision.
For those who demand maximum response and raw feedback, a pillowball top mount option is also available—built for pure performance.
We minimized rod wear through structural analysis. In addition, by using high-quality sealing components, we significantly enhanced durability

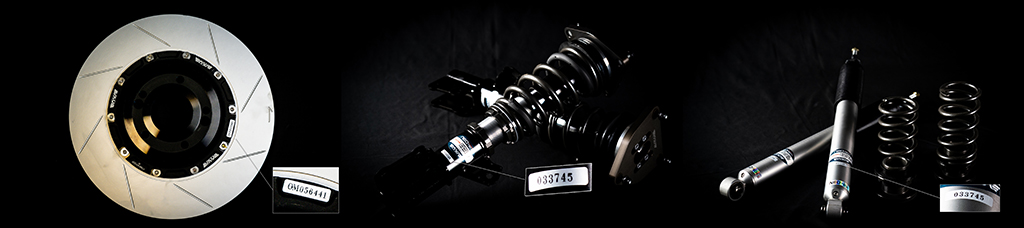

All Neotech products come with serial numbers for product registration.
Tuning parts certification is based on Article 34-2 of the Automobile Management Act, Article 55-2 of the Enforcement Rules of the Automobile Management Act, and the Ministry of Land, Infrastructure and Transport Notice No. 2015-1 to ensure safety when tuning cars.
Displayed serial numbers and follow-up numbers for secure management
QR code is attached to the relevant certification marks to enable checks on the product's certification number, part name, and manufacturer's name
Dealers can ensure simplified product registration by scanning the QR code
Security pattern for smart device recognition is applied with forgery prevention technology
